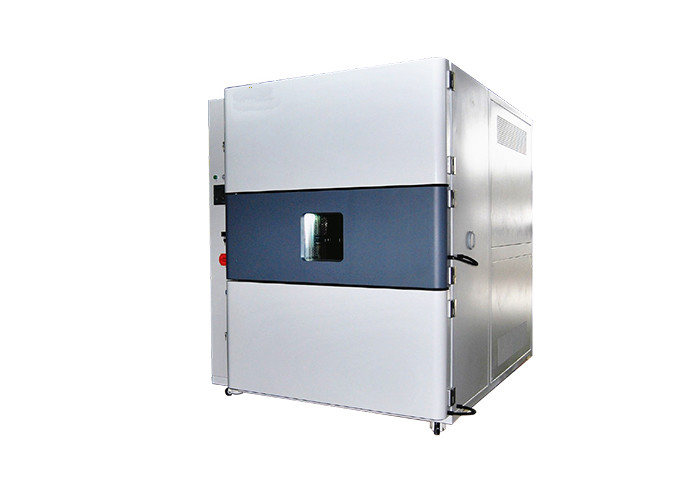

Auto Parts Test Equipment Temperature Shock Chamber For Auto Components Reliability Test
Standard:
IEC 60068-2-1 Environmental testing for electric and electronic products – Part 2-1: Tests methods – Test A: Cold;
IEC 60068-2-2 Environmental testing for electric and electronic products – Part 2-2: Tests methods – Test B: Dry heat;
IEC 60068-2-14 Environmental testing – Part 2-14: Tests– Test N: Change of temperature;
ISO 12405-1 Electrically propelled road vehicles — Test specification for lithium-ion traction battery packs and systems — Part 1: High-power applications clause 8.1 Dewing — Temperature change;
Application:
The chamber is applicable to the evaluation on the ability of products (complete machine), elements, components and parts, etc. to withstand the dramatic change in temperature. This temperature shock test can enable you to understand the influence brought by one or several dramatic consecutive changes in temperature of the test samples. The main parameters that affect the temperature change test are the high temperature and low temperature within the temperature change range, the holding time of samples at high temperature and low temperature, and the number of repeated tests, etc.
This series is divided into horizontal structure, vertical structure and three-chamber type. The series is equipped with the function enabling the customer to use one chamber for several purposes. Auto Parts Test Equipment
Parameter:
| Inside volume | 150L(can be customize) |
| Heating chamber | Temperature exposure range | H type: +50°C ~+150°C; M type: +50°C~+150°C; L type: +50°C~+125°C |
| Upper limit of preheating temperature | 200°C |
| Heating time | RT~+200°C, H type: nearly 30min; M type: nearly 40min; L type: nearly 50min |
| Cooling chamber | Temperature exposure range | H type -65°C~+150°C; M type -55°C~+150°C; L type -40°C~+125°C |
| Low limit preheating temperature | +75°C |
| Cooling time | RT~-70°C, H type: nearly 40min; M type: nearly 50min; L type: nearly 60min |
| Chamber | Temperature impact range | H type -65°C~+150°C; M type -55°C~+150°C; L type -40°C~+125°C |
| Temperature fluctuation | ±0.5 |
| Temperature deviation | ±2°C |
| Transfer time | ≤10s |
| Temperature recovery time | ≤5min Auto Parts Test Equipment |
| Load (steel) | 7kg |
| Internal dimension(mm) | 500*600*500 (D*W*H) |
| External dimension(mm) | 2350*1670*2150(D*W*H) |
| Caster | 4pcs |
| Inspection window | 450*450, one for heating chamber and one for cooling chamber |
| Test hole | One , diameter 50 |
| Stainless steel shelf (2pcs in standard configuration) | Bearing 30kg/pc |
| Illumination | 2*35W/12V |
| Colling mode | Water cooling (water temperature 7~28°C, water pressure 0.2~0.4Mpa) |
| Power supply | 380V±10%/50Hz±1, three phase five wire system(3P+N+G) |
