6K Testing Probes for Protection Against Foreign Objects And Access Degrees

Name: 6K Testing Probes for Protection Against Foreign Objects And Access Degrees
Brand: HeJin
Price: 1 USD

Buy cheap 6K Testing Probes for Protection Against Foreign Objects And Access Degrees product

Brand Name : HeJin

Model Number : HT-I01/HT-I02/HT-I03/HT-I04/HT-I06

Certification : Third party calibration certificate(cost additional)

Place of Origin : China

MOQ : 1 Set

Price : Negotiatable

Payment Terms : T/T, L/C

Supply Ability : 20 set per month

Delivery Time : 3 days

Packaging Details : Plywood/Carton box

Standard : ISO 20653, IEC 60529

Usage : Degree of protection against access of foreign objects

First code element : 1/2/3/4/5K/6K

Product Name 1 : Test probe A/B/C/D/2

Rigid test ball diameter : SФ50+0.05 0

probe B finger diameter : Ф12 0 -0.05

Probe C diameter : Ф2.5+0.05 0

Probe D diameter : Ф1+0.05 0

Contact Now

Probes For Testing Of Degrees Of Protection Against Foreign Objects And Access

Standard:

ISO 20653-2013 Road vehicles — Degrees of protection (IP code) — Protection of electrical equipment against foreign objects, water and access, Table 5 Probes for the testing of degrees of protection against foreign objects and access; Auto Parts Test Equipment

Parameter:

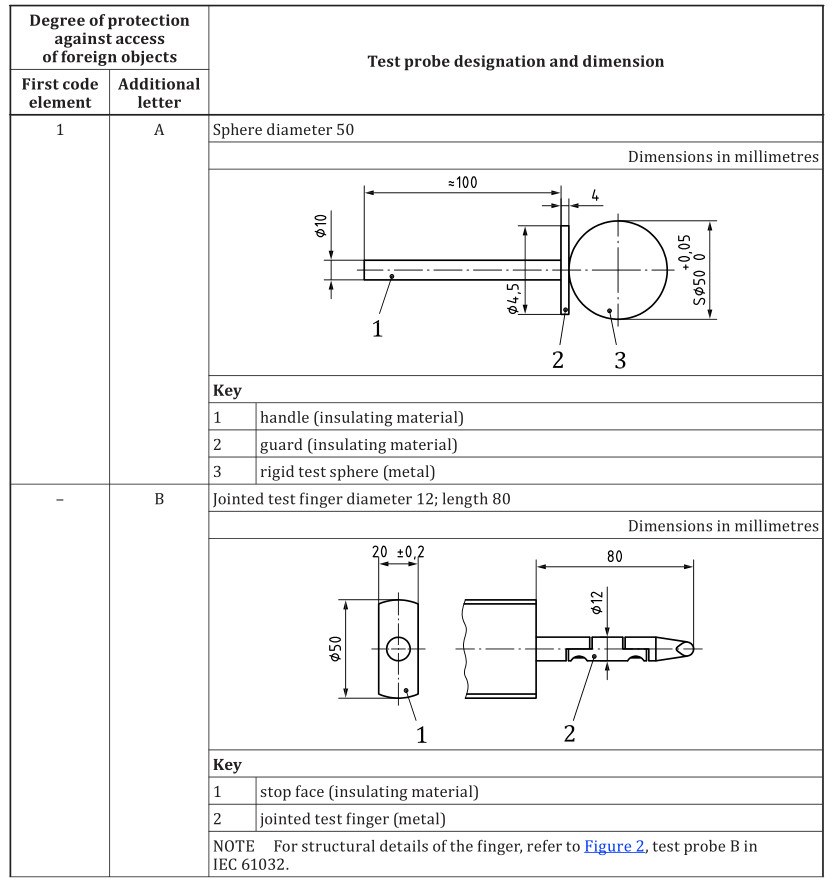

Model	HT-I01
Name	Test probe A
Rigid test ball diameter (metal)	SФ50+0.05 0
Baffle diameter (nylon)	Ф45±0.2
Baffle thickness	4
Handle diameter	Ф10
Handle length (nylon)	100
Model	HT-I02
Name	Standard Test Finger
Joint 1	30±0.2
Joint 2	60±0.2
Finger length	80±0.2
Fingertip to baffle	180±0.2
Cylindrical	R2±0.05
Spherical	R4±0.05
Fingertip cutting bevel angle	37^o 0 -10′
Fingertip taper	14^o 0 -10′
Test finger diameter	Ф12 0 -0.05
A-A Section diameter	Ф50
A-A Section width	20±0.2
Baffle diameter	Ф75±0.2
Baffle thickness	5±0.5

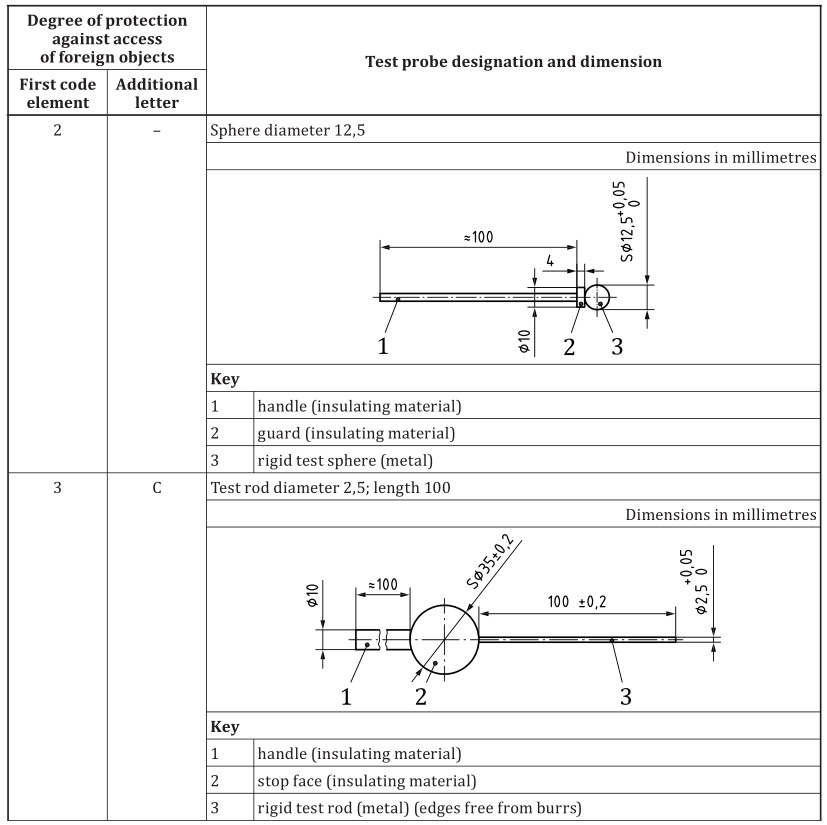

Model	HT-I03 Auto Parts Test Equipment
Name	Test rod probe C
Probe diameter	Ф2.5+0.05 0
Sphere diameter	SФ35±0.2
Handle diameter	Ф10
Probe length	100±0.2
Handle length	100

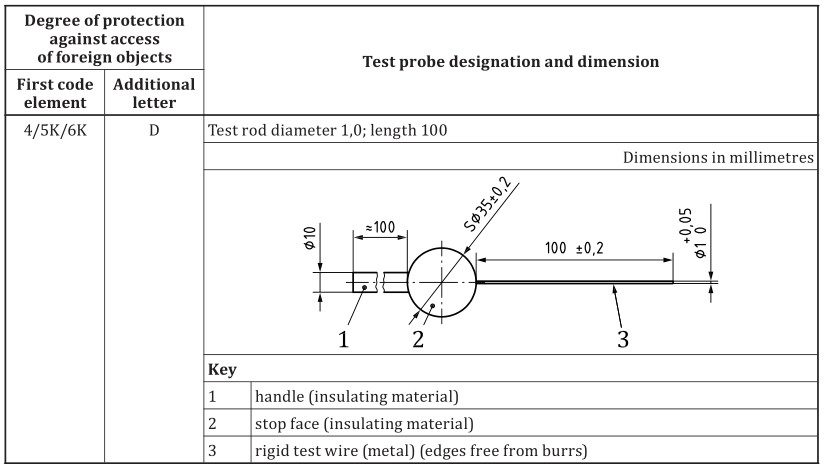

Model	HT-I04
Name	Test rod probe D
Diameter of the metal wire	Ф1+0.05 0
Sphere diameter	SФ35±0.2
Handle diameter	Ф10
Probe length	100±0.2
Handle length	100
Model	HT-I06
Name	Test probe 2 steel ball
Steel ball diameter	SФ12.5+0.2 0

6K Testing Probes for Protection Against Foreign Objects And Access Degrees

Product Tags:

6K Testing Probes

IEC 60529 Testing Probes
