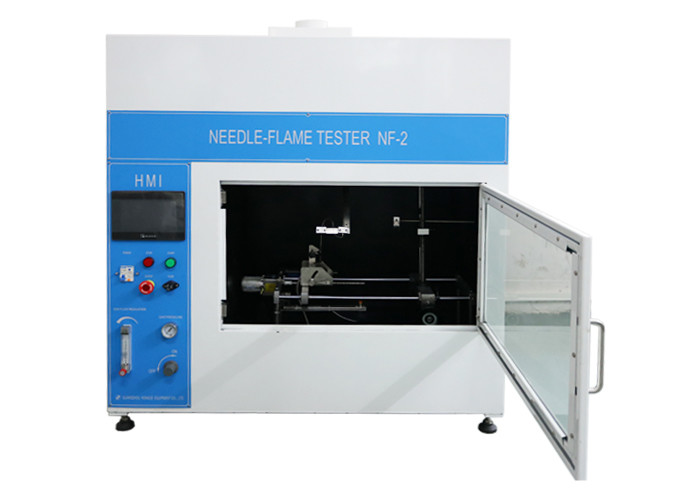

Needle - Flame Flammability Testing Equipment For Fire Hazard Testing 12mm Flame Height

  • 1
  • 2

Brand Name : HeJin

Model Number : NF-2

Certification : calibration certificate (cost additional)

Place of Origin : China

MOQ : 1 set

Price : Negotiatable

Payment Terms : L/C, T/T

Supply Ability : 10 set /month

Delivery Time : 30 days

Packaging Details : plywood

Standard : IEC60695-11-5

Height of the flame : 12±1mm

burner : bore of 0,5 mm ± 0,1 mm, outer diameter 0,9 mm

Copper block : Φ4±0.01mm, weight: 0.58±0.01g

inside volume of the chamber : 0.5 m 3

Combustion angle : Tilt 45°( testing )or vertical

Usage : Flame Testing Equipment

Material of nurner : Stainless steel

Contact Now

Needle-flam Flammability Testing Equipment for Fire Hazard Testing 12mm Flame Height



Standard:

IEC 60695-11-5 Fire hazard testing – Part 11 -5: Test flames – Needle-flame test method – Apparatus, confirmatory test arrangement and guidance.



Application:

The test is performed to determine that, under defined conditions, the test flame does not cause ignition of parts, or that a combustible part ignited by the test flame has a limited duration of burning or a limited extent of burning, without spreading fire by flames or burning or glowing particles falling from the test specimen.

This test determines the effects on the test specimen of a small flame such as may arise from other ignited components and the relevant product specification shall specify the duration of flame application and the criteria for acceptance. Flammability Testing Equipment



Parameter:

Control mode Using the advanced PLC control, to achieve intelligent control
Display mode True color LCD (standard equip 7 Inch display control touch screen)
Chamber Structure Stainless steel plate with high-grade paint
Button switch Top grade button. Flammability Testing Equipment
Combustion gas Butane or propane gas having a purity of at least 95%
Flame application time 0-9999.9s can be preset
Flame duration 0-9999.9s display, automatic recording, manual pause

Gas flame temperature

gradient

 100℃ ± 2℃ ～ 700℃ ± 3℃ ( room temperature～ 999℃ ) , 23.5s±1.0s (1s ～ 999.9s)
Flame height 12mm ± 1mm ( Adjustable )
Combustion angle Tilt 45°( testing ) or vertical ( when adjust and measure the height of the flame)
Needle burner Stainless steel,bore diameter:Φ 0.5mm ± 0.1mm, outer diameter ≤Φ 0.9mm , length≥35mm
Thermocouple Φ 0.5 armour nickel-chromium / nickel aluminum wire K type thermocouple, temperature resistance 1100°
Temperature sensing delay 1.7S
Test space ≥ 0.5m³, black yogon background

Needle - Flame Flammability Testing Equipment For Fire Hazard Testing 12mm Flame Height
